VMP(Vine Multimedia Platform)

VMP(Vine Multimedia Platform)?

5Gbps이상의 대역폭을 제공하는 고속의 VOIP Media 처리 플랫폼입니다.

주요기능

High Performance 5Gbps Throughput의 Media Relay를 제공하며, 20,000 session 이상 지원 가능합니다. Reliability & Scalability ATCA Platform을 이용하여, 고속의 Media처리뿐 아니라 안정적인 시스템 환경을 제공합니다. 또한 Network Service Blade를 통하여 추가 확정이 용이한 n+1 구조를 지원 합니다. Security TLS, MIKEY, SRTP, IPsec 등을 제공하여, 보안통신의 Signaling, Media Gateway에 필요한 요소 기능 제공합니다.

개발 플랫폼 H/W 구조

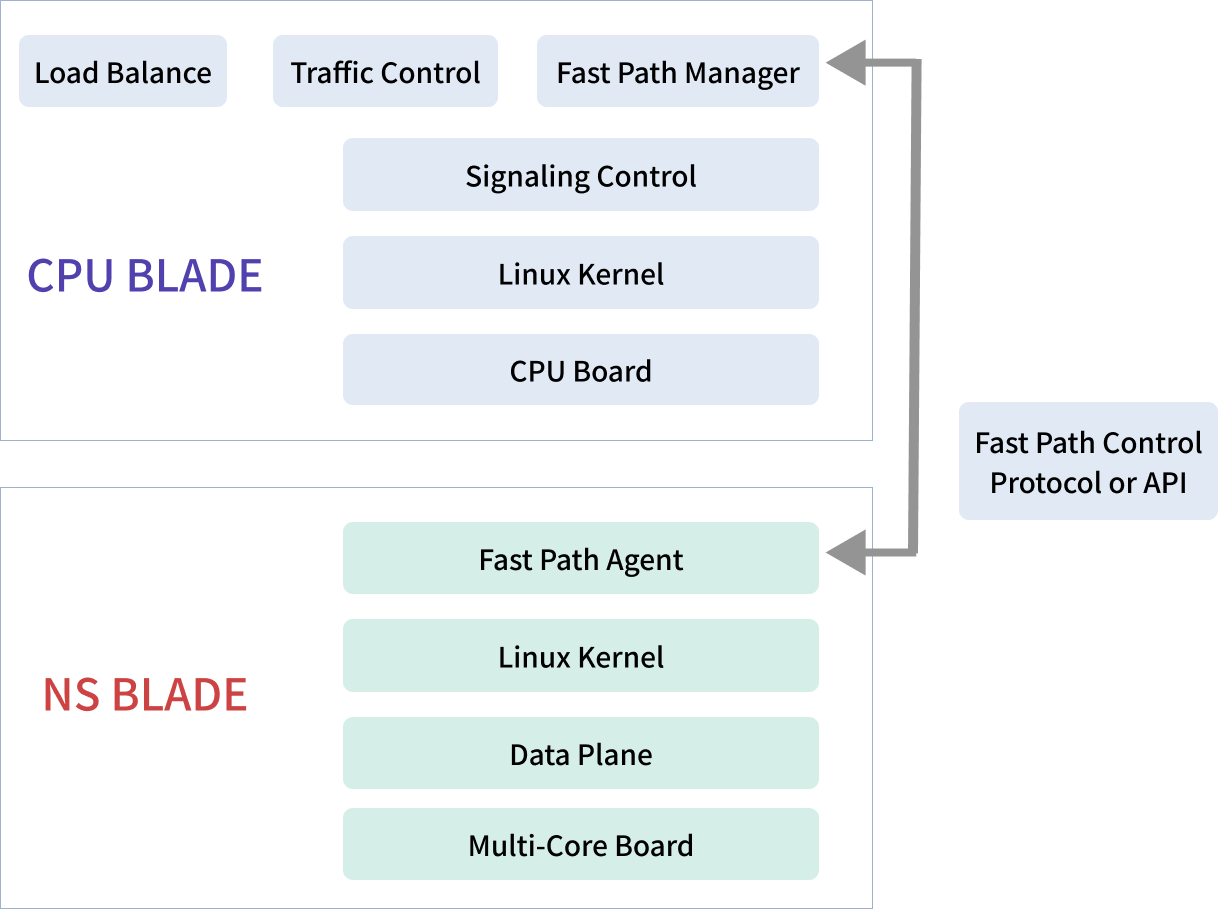

개발 플랫폼 CPU Blade와 NSP Blade사이의 관계

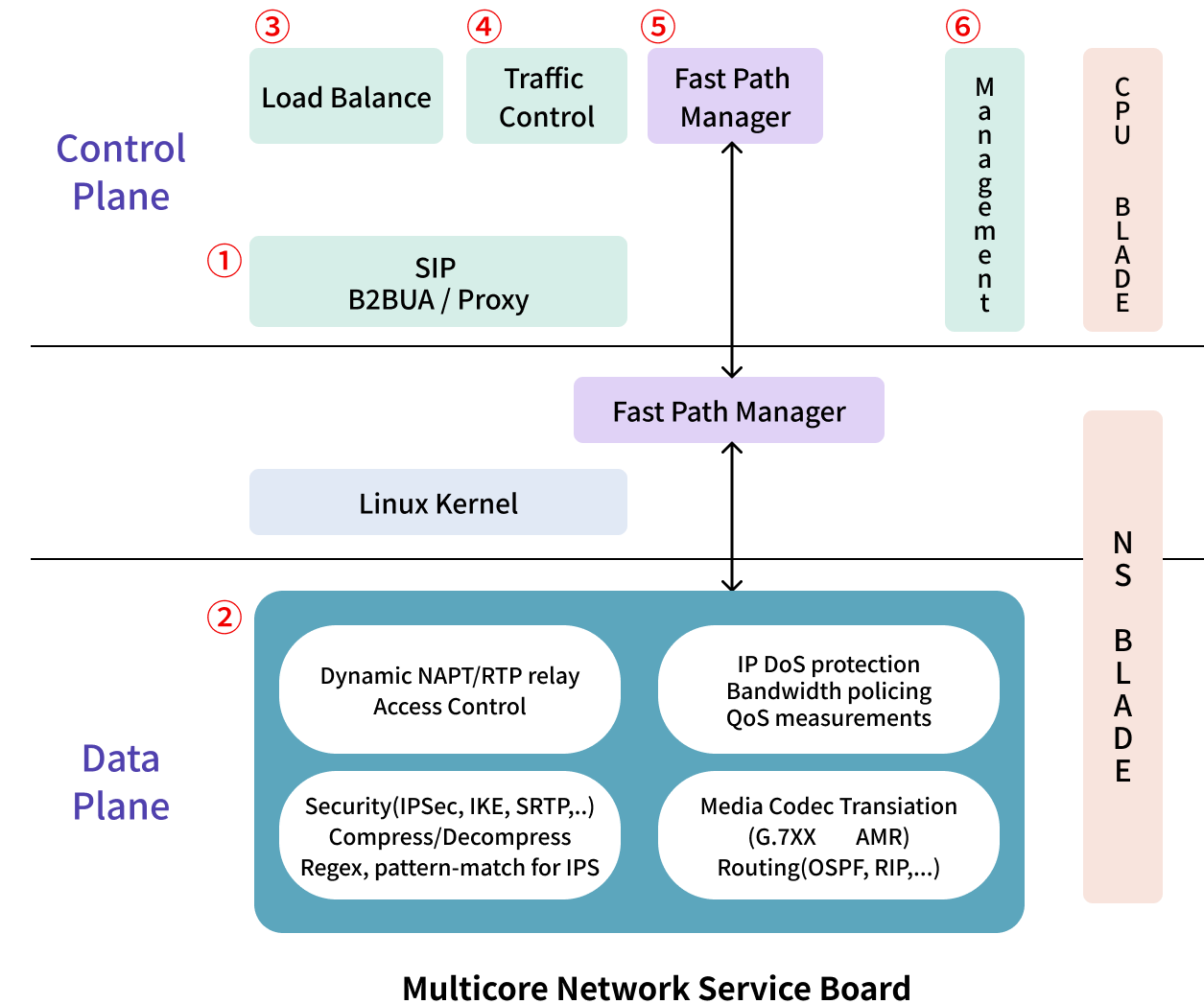

개발 플랫폼 Logical S/W 구조 및 개발 영역

① SIP B2BUA/Proxy Signaling Control 은 SIP 의 B2BUA 와 Proxy 를 이용합니다. ② Data Plane Control 1st Phase : Dynamic NAPT/RTP relay , Access Control
2nd Phase: IP Dos protection
3rd Phase : Security(IPSec, IKE, SRTP, …), Compress/Decompress, Regex, pattern-match for IPS
4th Phase : Media Codec Transtation(G.7xx ←→ AMR), Routing(OSPF, RIP, ...) ③ Load Balance ㉠ Session Routing, Media Based, Load Balancing ④ Traffic Control ㉠ Policy - Session Capacity, Session Rate, Access Control, Bandwidth
㉡ Accounting
㉢ QOS Reporting ⑤ Fast Path Manager/Agent MCNP(Multi-Core Network Processor) Platform의 Control Plane과 Data Plane사이에 직접적인 통신으로 고속의 처리를 보장합니다. ⑥ Management ㉠ CLI ㉡ SYSLOG ㉢ XML ㉣ SNMP ㉤ Configuration Repository
